Model#:ASI-1802x
Parameter
|
WR-15
|
WR-12
|
WR-10
|
||||
Pass-Band, GHz
|
50-75
|
60-90
|
75-110
|
||||
Insertion Loss,(Worst Case)dB
|
1.50
|
2.0
|
2.00
|
||||
Insertion Loss Flatness, dBpp
|
0.05
|
0.04
|
|||||
Group Delay Variation, ns
|
0.4
|
0.35
|
|||||
Group Delay Stability, nspp
|
0.05
|
0.02
|
|||||
VSWR
|
1.20:1
|
1.15:1
|
|||||
Min Rejection, dB
38GHz & 80GHz
45GHz & 98GHz
56GHz & 118GHz
|
.
35-40
.
.
|
.
.
35-40
.
|
.
.
.
35-40
| ||||
Temperature Range, C
|
-40 to +70
|
-40 to +70
|
|||||
Interface
|
WR-15
|
WR-12
|
WR-10
|
||||

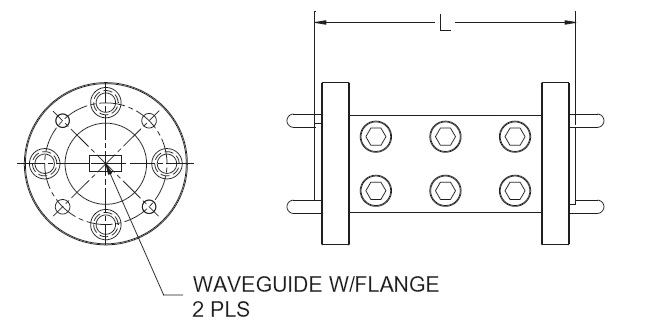

Dimensions (L),
mm
inch
|
.
20.32
0.8
|
.
25.4
1.0
|
.
30.4
1.2
Weight, g
175
175
175
|
Band Pass Filter- WR-15(50GHz-75GHz),WR-12(60GHz-90GHz),WR-10(75GHz-90GHz)
These compact band-pass filters are targeted toward common mm and sub-mm wave applications.
Contact ASInc. for futher details.Performance Overview
