Model#:ASI-1400
Parameter
|
Typical Value
|
Notes
|
||||||||||||||||||||||||
Center Frequency (Fc), MHz
|
2800
|
Optional: Fc could be set between 2600 MHz to 3000 MHz
Insertion Loss, dB
0.6
Pass-Band Insertion Loss var @ GHz
0.8 dB
Insertion Loss Stability over Temperature, dBpp
-
Pass-Band Return Loss, dB
16 dB
Group Delay Variation, ns-pp
7.5
Min Rejection, dB
From DC to (Fc - BW)
From (Fc + BW) to 5000 MHz
.
>65
>65
Dimensions,(inch)
1.25 x 1.53 x 2.34
Weight: <210gm
Temperature, C
-20 to +60
|

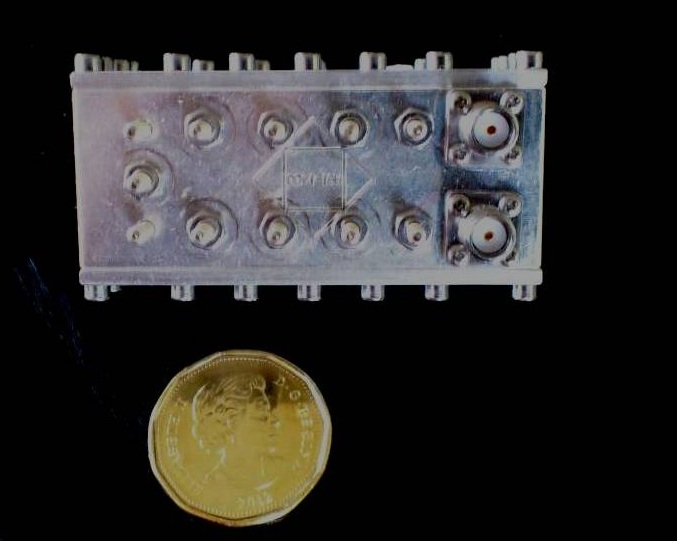

S-band Wideband Bandpass Filter ASI-1400 Series
This compact coax filter suitable for size-constrained applications.
The filter band width is 200 MHz pass-band centerted at 2.8GHz while offering low insertion losss.
The filter has a ultra wide pass-band covering frequencies from 2.7GHz to 2.9GHz and provides greater than 65dB of rejection
between frequencies less than 2.6 GHz and greater than 3.3 GHz.
Performance Summary
