Model No: 10001
Parameter
Worst Case Value
Typical Value
Notes
Pass-Band, GHz
10.7 - 12.75
10.7-12.75

Insertion Loss, dB
0.10
0.07

VSWR
1.20:1
1.15:1

Min Rejection, dB
13.75 -14.5 GHz
.
90
.
90

Temperature Range, C
-40 to +70
-40 to +70

Interface
WR-75
WR-75
UBR-120

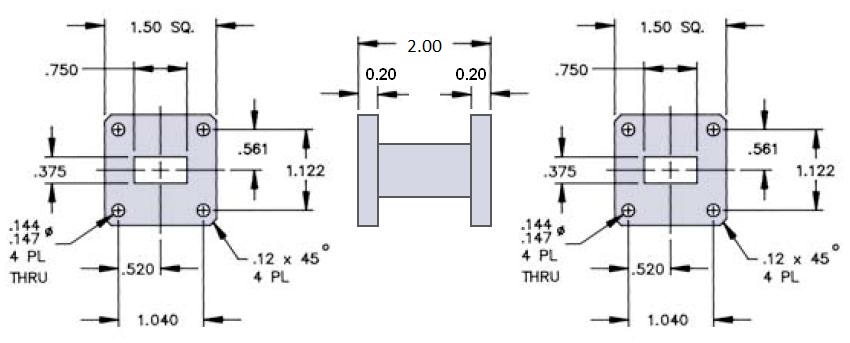

Dimensions (L x H x W),
mm
inch
.
50.8 x 38 x 38
2.00 x 1.50 x 1.50
.
50.8 x 38 x 38
2.00 x 1.50 x 1.50

Weight, g
100
75

WR-75 Transmit Reject Filter


This compact waveguide low-pass filter is ideal for common satellite downlink applications. The filter has wide pass-band covering downlink frequencies of most satellites orbiting over Americas, Europe, and Australia (from 10.7 to 12.75 GHz) and rejects the uplink frequencies between (13.75 to 14.5 GHz) by > 70dB.

Performance Summary
